Tombua Landana (TL)
overview
Tombua Landana fields were discovered in 1997 and 2001, respectively, by Tombua-1 and 14-6X/6XST1 wells. The fields lie in the eastern part of Block 13 and cover over 425 sq km in water depths of 900 to 1,700 ft. Geographically, they are situated just south of the Lobito field and north of the Gabela oil discoveries and are bounded by Block 0 to the east and 14 K/A-IMI Unit to the west. An additional 14 appraisal well penetrations were drilled to obtain a better understanding of the geology associated with each of the accumulations, further quantify reserves and evaluate development potential.
The Tombua and Landana fields were declared commercial discoveries on July 8, 2003, under the terms of the Block 14 Production Sharing Agreement (PSA). Two contiguous development areas covering both fields were joined on October 7, 2003. The two development areas were combined for fiscal treatment on September 19, 2005 (N/Ref: 018-1259/CCC/05).
* Click on the image to view full size image.

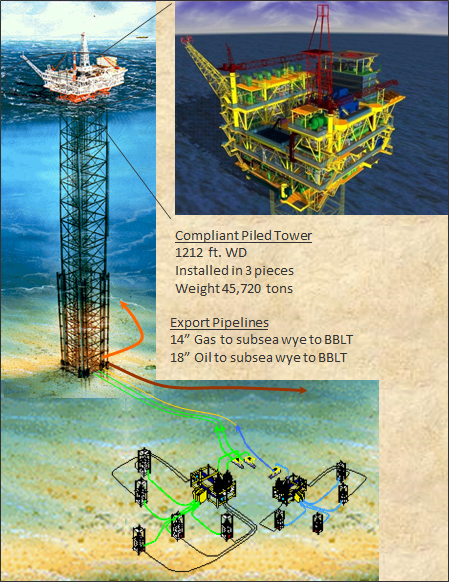

tombua-landana introduction
Operating weight 35,300 st.
CPT Peak Production: 130 MBOPD, 217 MMCFD, 185 MWBD
CPT Peak Injection: 310 BWPD
Tender Assist drilling rig
Sulfate removal membranes
Zero water discharge
46 well developments (24 producers and 22 injectors) Approx. 334 MMbbls recoverable light oil (inc Landana North) 425 square kilometer area
Landana North Subsea Wells
3 producers
3 injectors
Tied back to Lobito C
GO-36 endorsed: Jun 2006
First Oil: Aug 2009
Compression/Injection: Jan 2010
Drilling completed: ~ 2014
6 producers
4 injectors
Scale squeeze capabilities

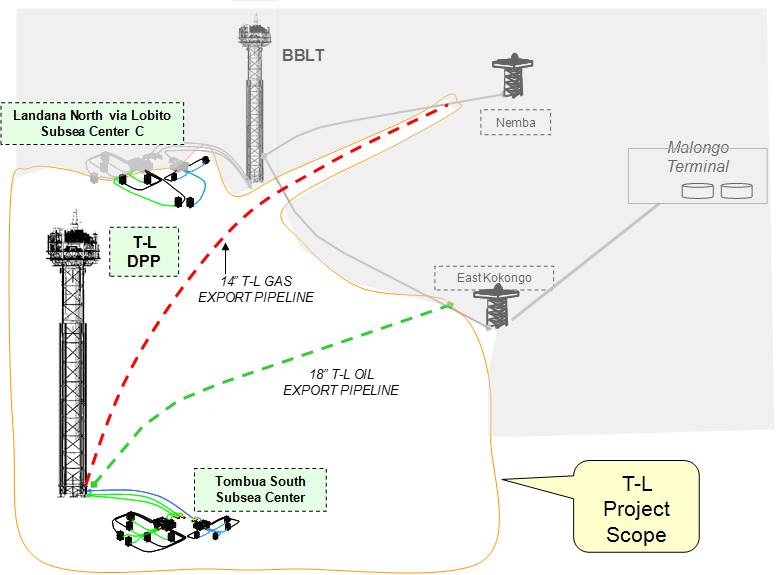

SIOP Original Project Scope and Design
DPP & Topsides
- Production Capability: 130 MBOPD, 217 MMCFD, 185 MWBD
- Injection Capability: 310 BWPD
- Sulfate removal membranes
- Tender Assist drilling rig for 30 dry tree wells
- Tombua South Subsea center with two manifolds for 10 subsea wells
- Production startup in 2009

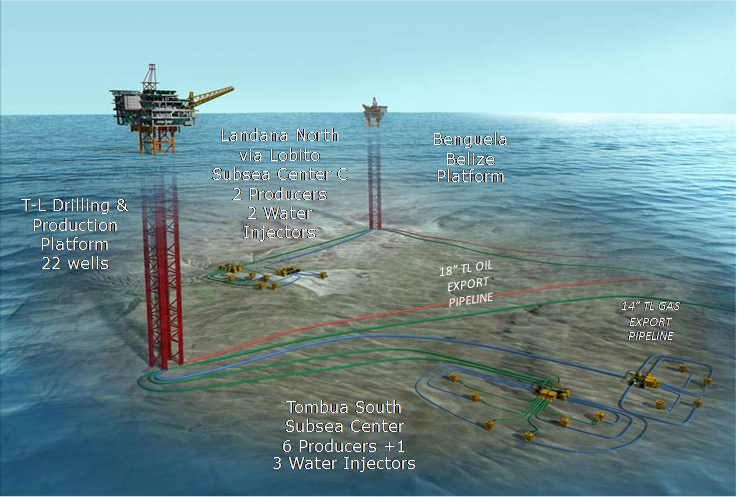

Landana North Subsea Wells
- 6 wells tied back to BBLT Subsea Center
- Production startup in 2006
Project Basis
- 46 well development (30 DPP/16 Subsea)
- 11 Reservoirs
- 342 MMbbls Recoverable
TL Reservoir Characteristics
- 8500'–10500' TVD
- 34-40o API Oil Gravity
- 3800-4200 psi reservoir pressure
- Initially 50–600 psi above bubble point
- 700-1100 scf/bbl GOR
- 0.25-0.5 cp oil viscosity
- Drive mechanism is solution gas with weak aquifer support
Project Overview
Safe Execution
- Project had good safety results: achieved 10.3 million man hours without a DAFW
- No routine flaring (< 1 MMCFD; Exporting ~74 MMCFD)
Key Events
- Achieved production peak of 64,000 BOPD in August 2010
SIOP Cost Performance
- Proposed 26% SIOP supplement to continue execution of the field development program
Milestones
- SIOP endorsed: May 2006
- First Oil: Aug 2009
- Drilling completed: June 2014
Development Drilling Status
- 8 Subsea producers online
- 4 Subsea injector online
- 6 Tower producers online
- 2 Tower injector online
